KNIFE GATE VALVE (80-400 NB)
The Dualflow Series
The Uniflow Series
APPLICATION (for Fluids, Slurries and Dry products)
- Sewage treatment plants
- Chemical & raw material industries
- Food industry
- Mining and allied industries

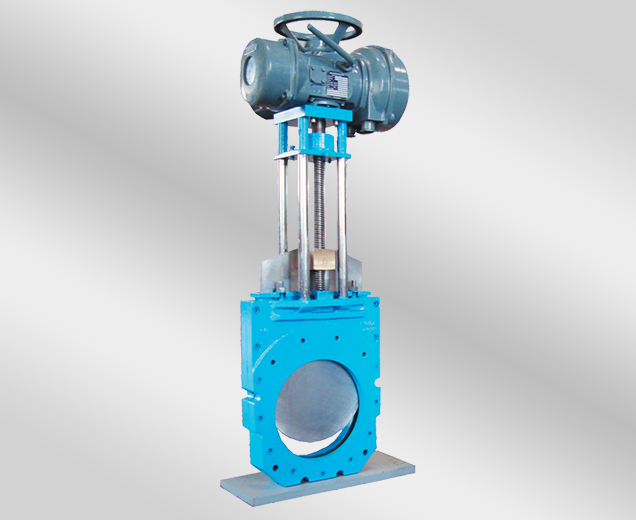

The Dual Flow Series
The unique seal design and the knife blade profile machined to close tolerance, ensure leak tight sealing for flows in either direction.

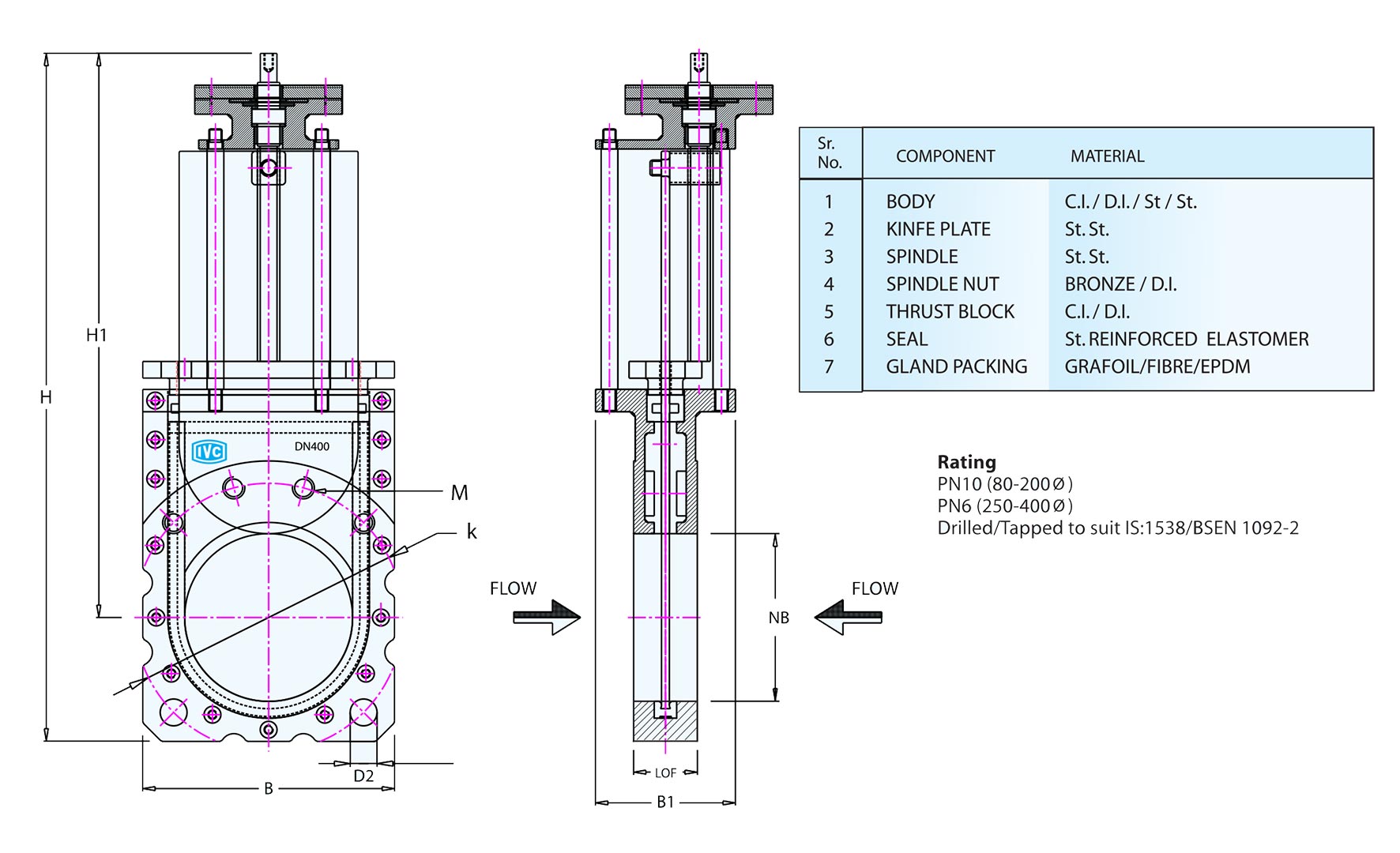

The Dualflow Series - Design

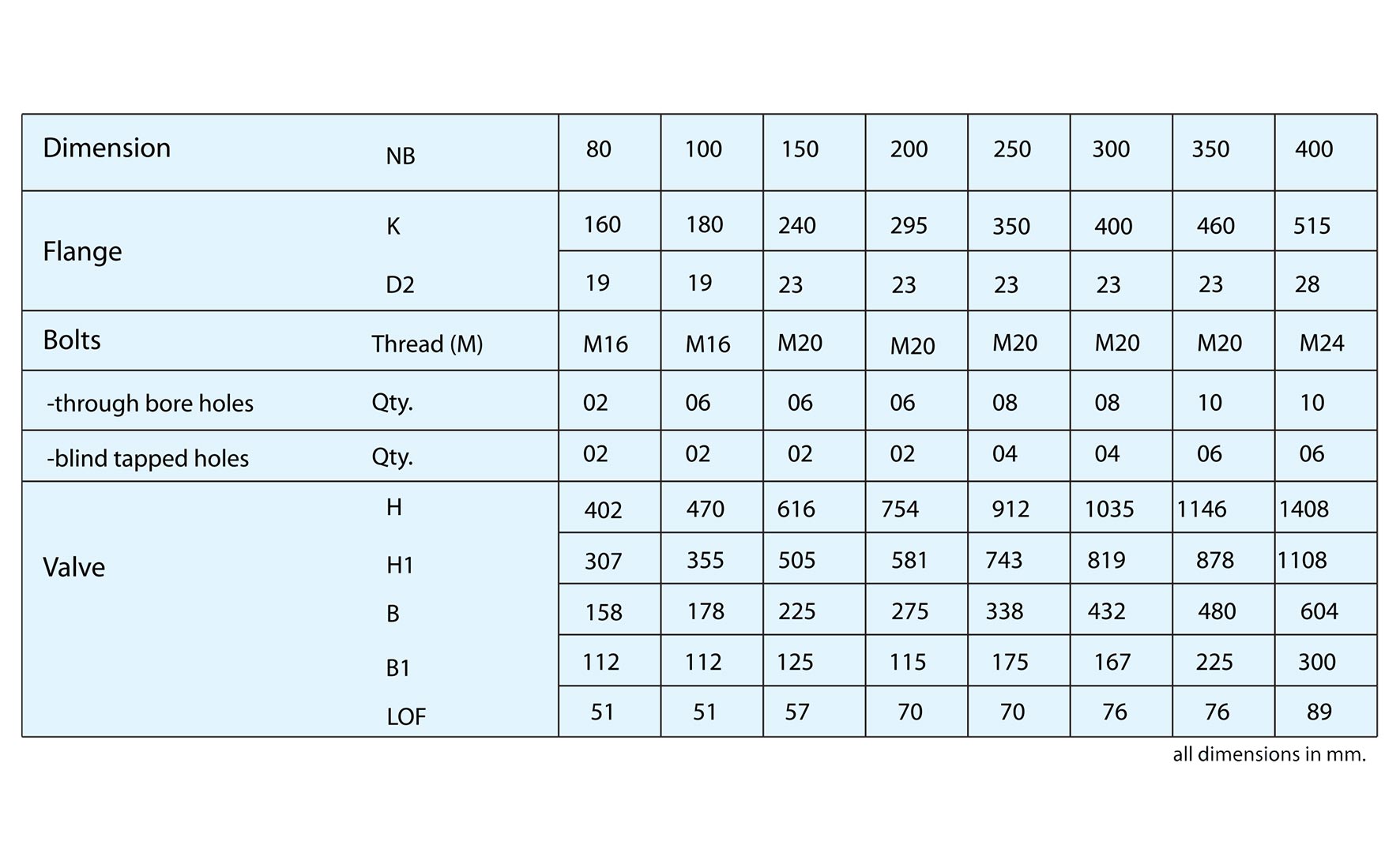

The Dualflow Series - Dimensions

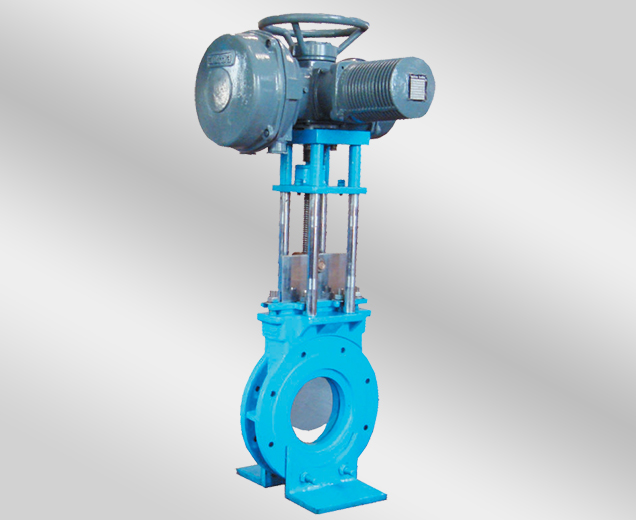

The Uni Flow Series
The “Uniflow” flanged series is suitable for isolation / regulation of flow and pressure in one direction.
The steel reinforced seal ring in body effectively staunches leakage when the plate is closed fully.

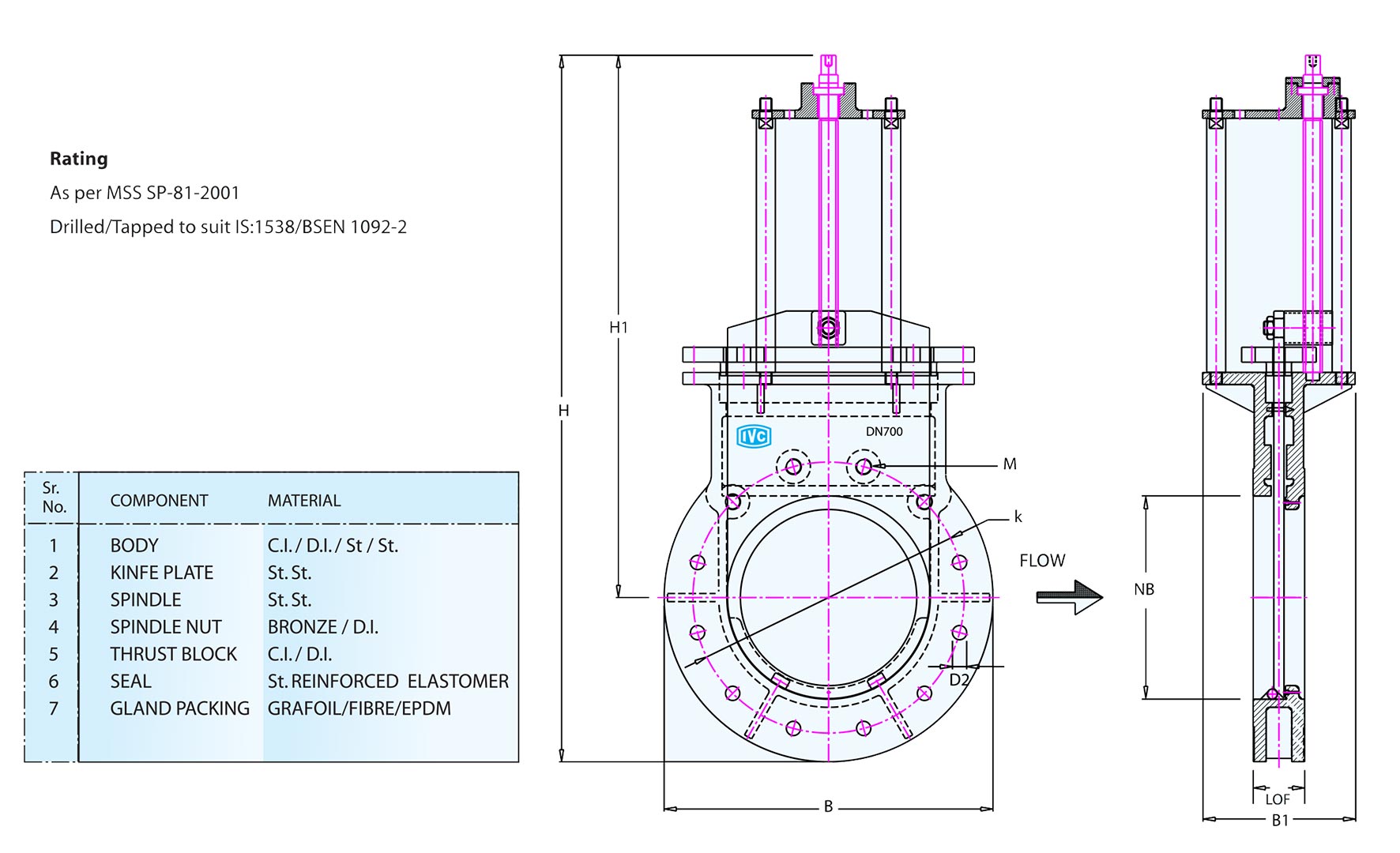

The Uniflow Series - Design

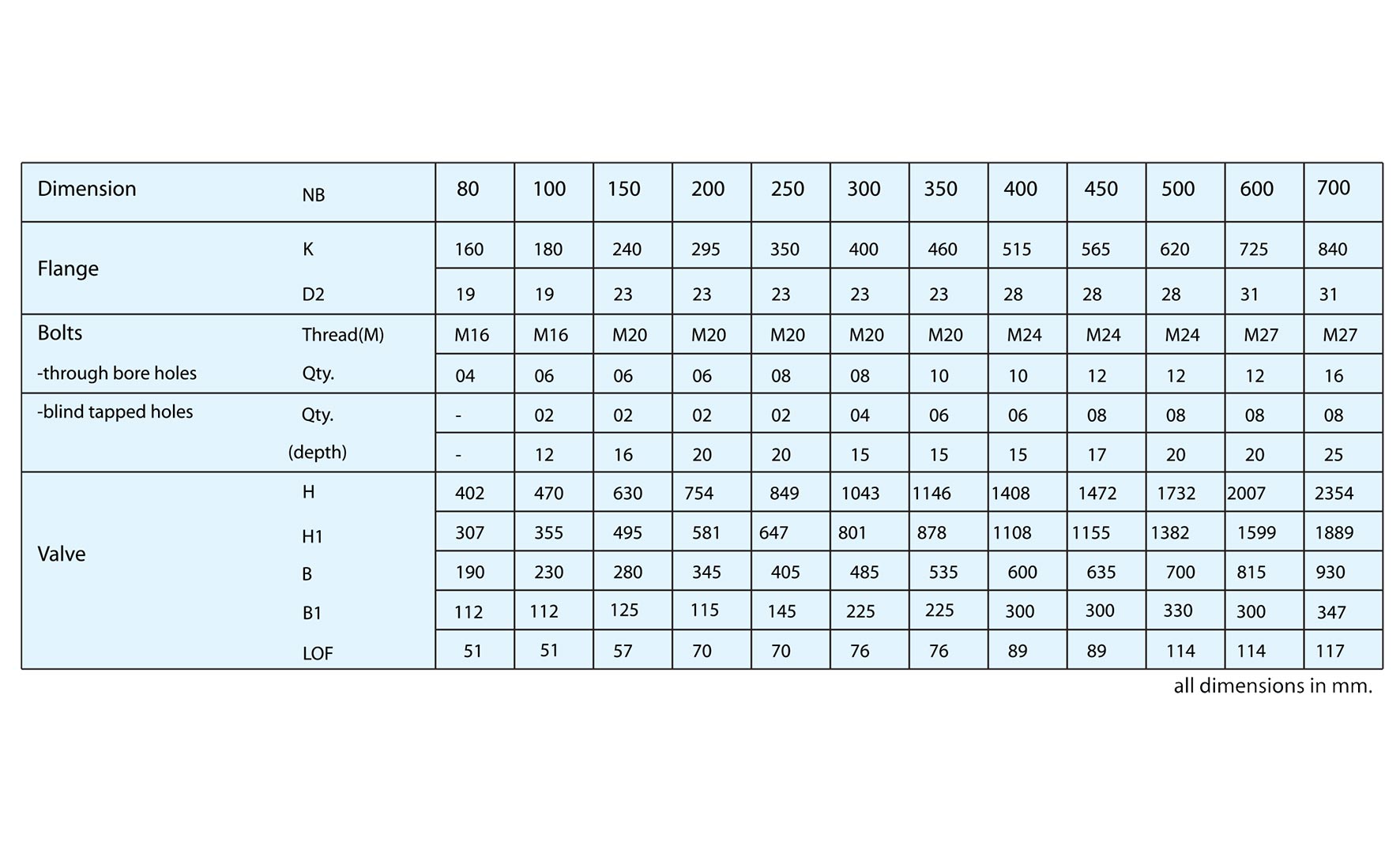

The Uniflow Series - Dimensions
Both the designs, the dual flow and the uniflow, offer Outside Screw rising and Non rising spindle.
Other positive features include
- Stainless steel reinforced seal to impart rigidity and long life
- Thrust bearing to reduce operating torque
- Choice of operation (optional) – with gear box, electric, hydraulic, pneumatic and distant mounted
- Indicator (optional)
- Coating: Epoxy Powder / Liquid Epoxy (thickness 250 micron m)
