METAL SEATED SLUICE/GATE VALVE (50-2000 NB)
Non Rising Spindle Sluice Valve

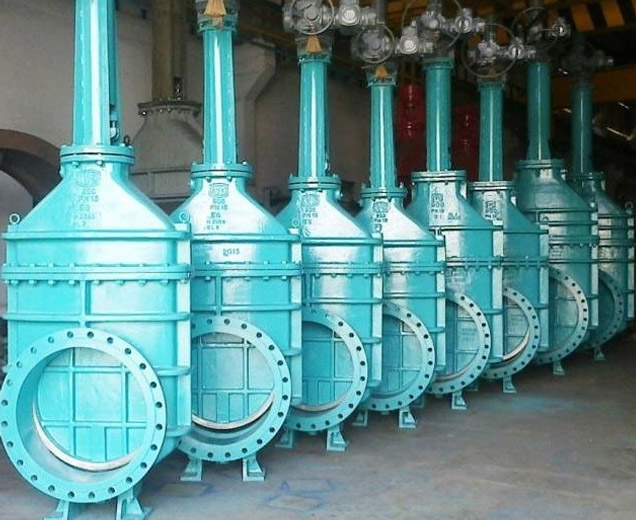

Rising Spindle Gate Valve
- Robust & reliable (Scottish design)
- Pressure rating up to PN 16 (50 to 2000 mm NB)
- Suitable for Raw, Clear, Waste & Sea water
- Tailor made for special applications and corrosive fluids
- Minimal maintenance
- General conformity to IS 14846 / BS EN 1171 / BS 5163
- Flanges faced and drilled to IS 1538 table 4 & 6 / IS 9523 / BS EN 1092-2
- Length Over Flanges : PD of IS 14846/ISO 5752 Basic Series 3
- Operation – Manual thru hand wheel or gearbox / Electric / Pneumatic / Hydraulic / Head stock
Optional Accessories
- Back Seat Bush – Bronze – for 200 NB and above (for re-packing under pressure)
- Shoe & Channel – Bronze / SS 304 – for 400 NB and above (not recommended for sewage duty)
- Ball thrust bearings (anti friction) – 400 NB and above
- Gear Box – ‘TMI’ make enclosed spur / worm / bevel with or without Mechanical Position indicator – 200 NB and above
- Drain Plug – 400 NB and above
- By-Pass arrangement - 400 NB and above
- Head stock operation (CL of water – PL of Platform to be furnished by the purchaser)
- Chain wheel operation
Note: - Integral seat and Face on body and door in place of separate rings can be provided for special applications, consult us.

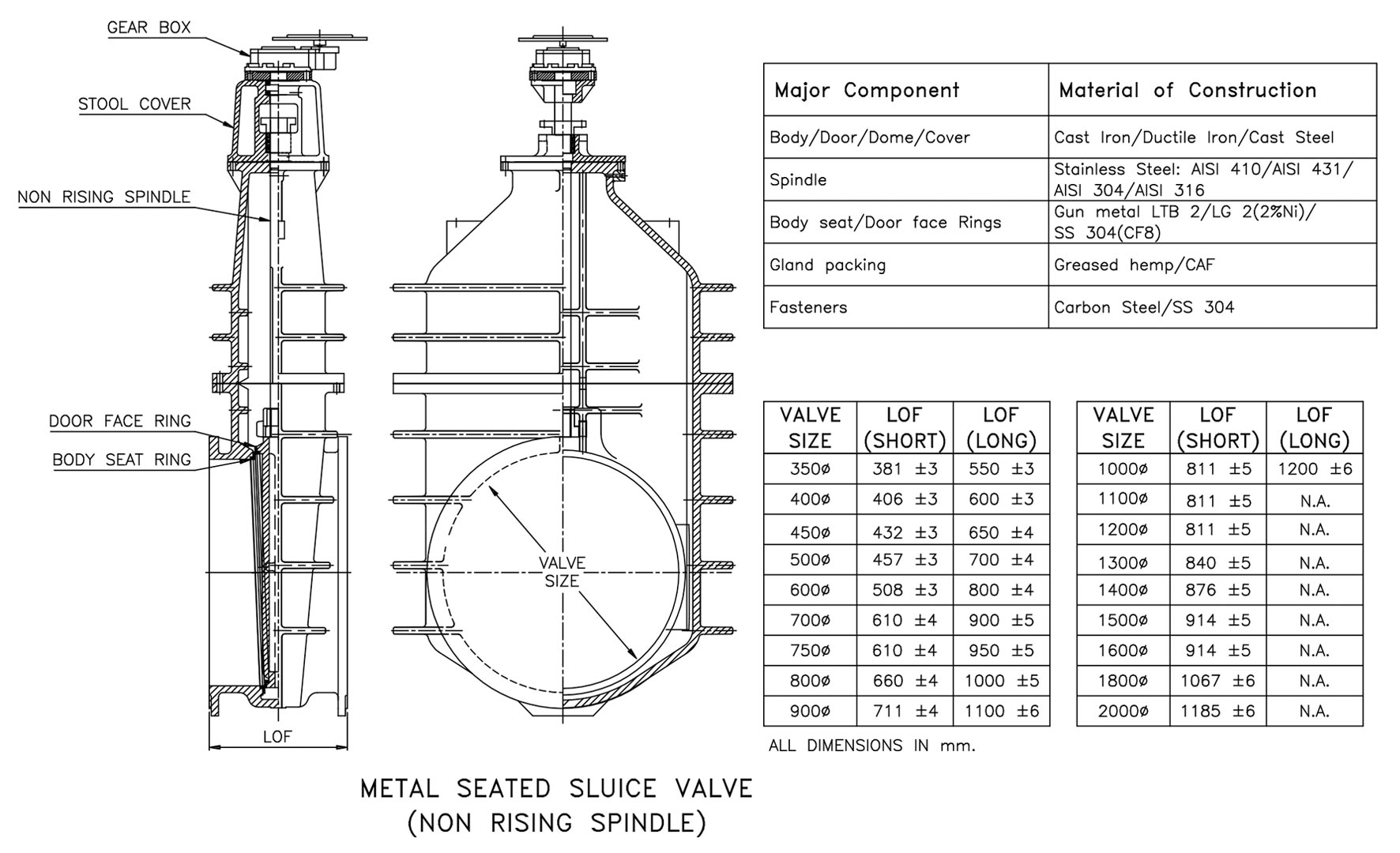

INSIDE SCREW NON RISING SPINDLE SLUICE VALVE

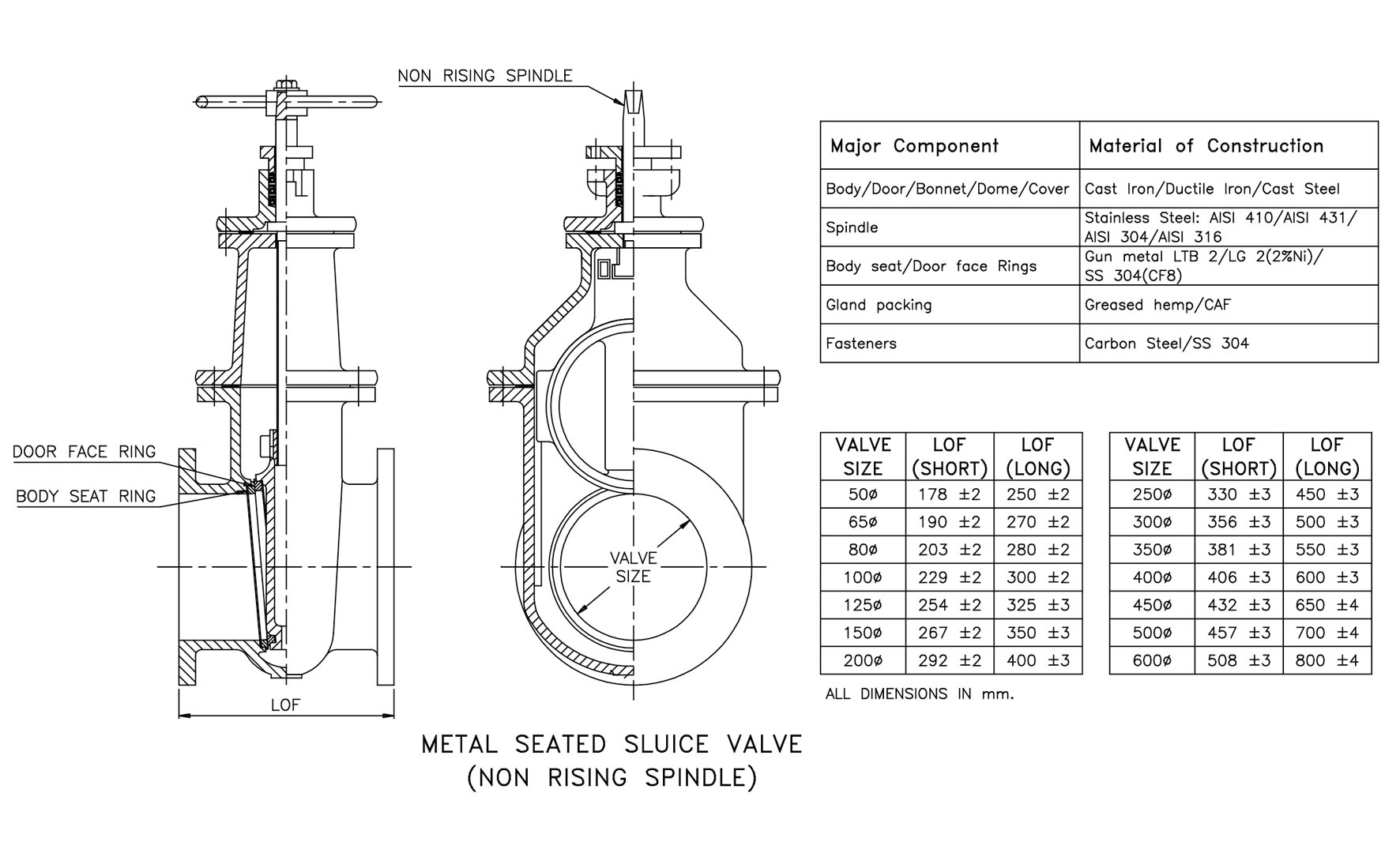

INSIDE SCREW NON RISING SPINDLE SLUICE VALVE

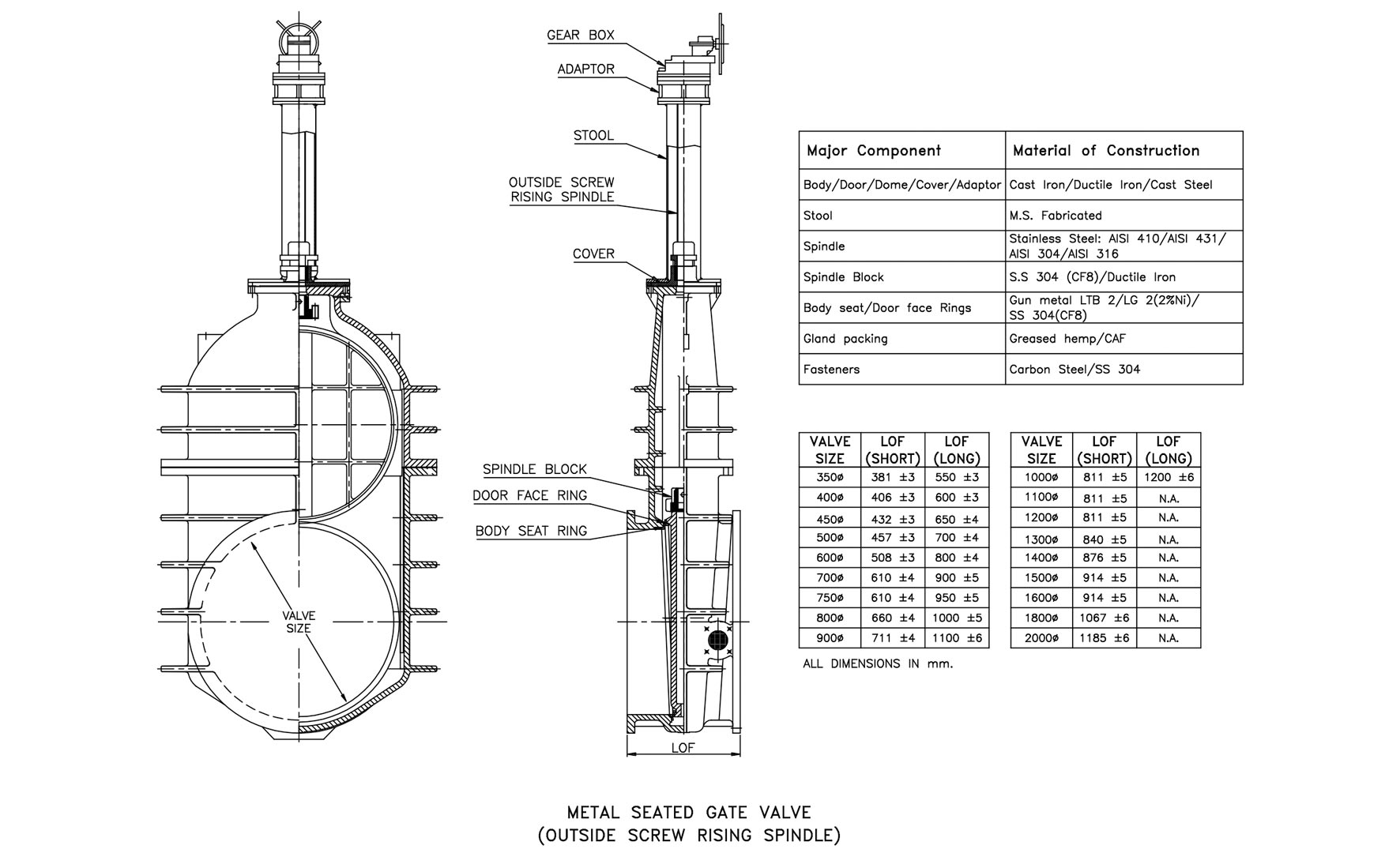

OUTSIDE SCREW RISING SPINDLE GATE VALVE

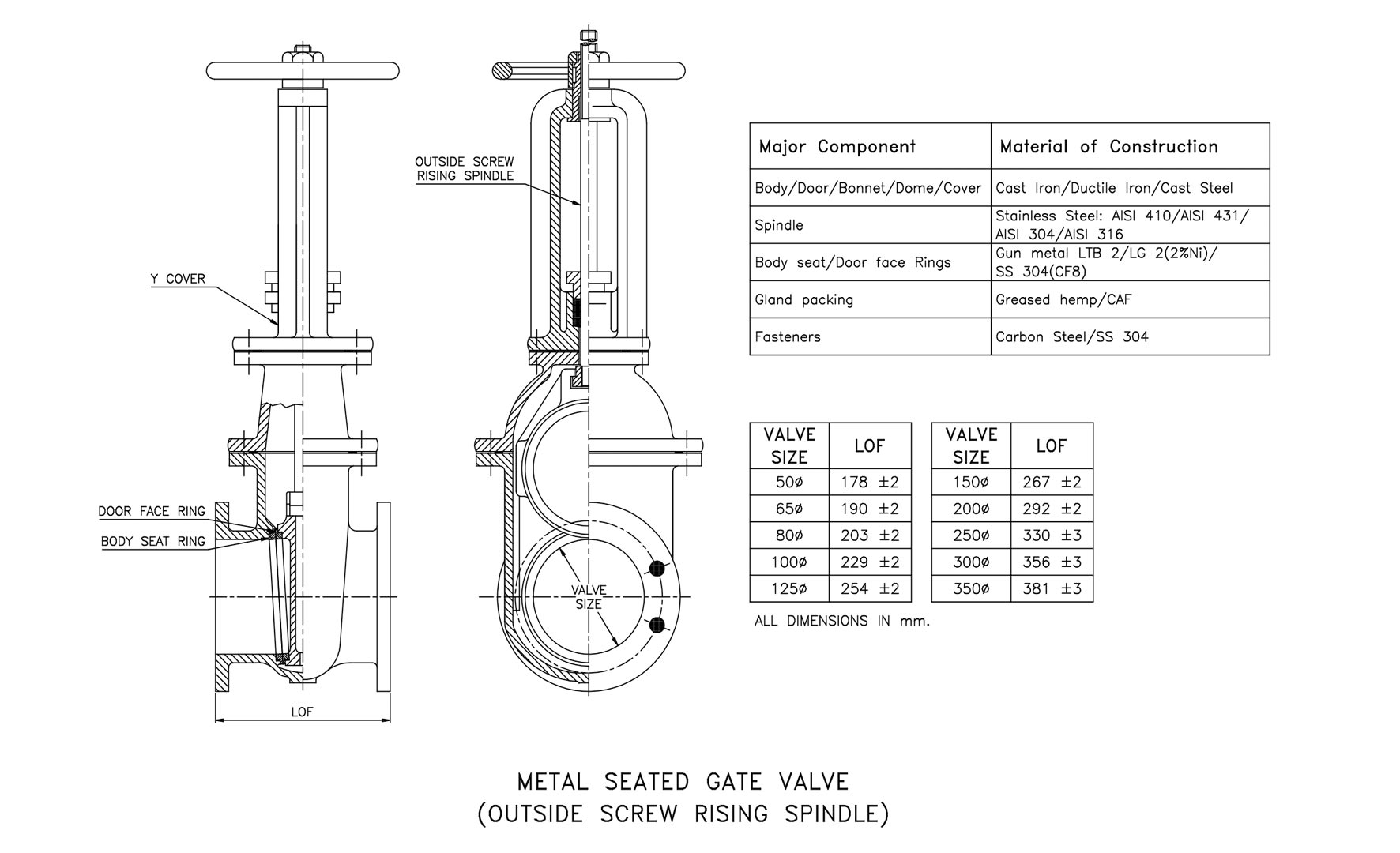

OUTSIDE SCREW RISING SPINDLE GATE VALVE
Applications
INSIDE SCREW NON RISING SPINDLE SLUICE VALVE : Water (both clean and raw, Sea water)
OUTSIDE SCREW RISING SPINDLE GATE VALVE : Waste water, Sewage, Effluent
Download Brochure (RISING SPINDLE) Download Brochure (NON RISING SPINDLE)
