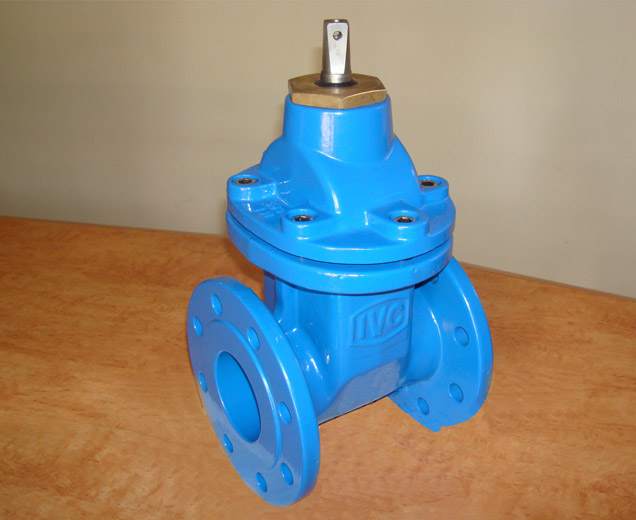

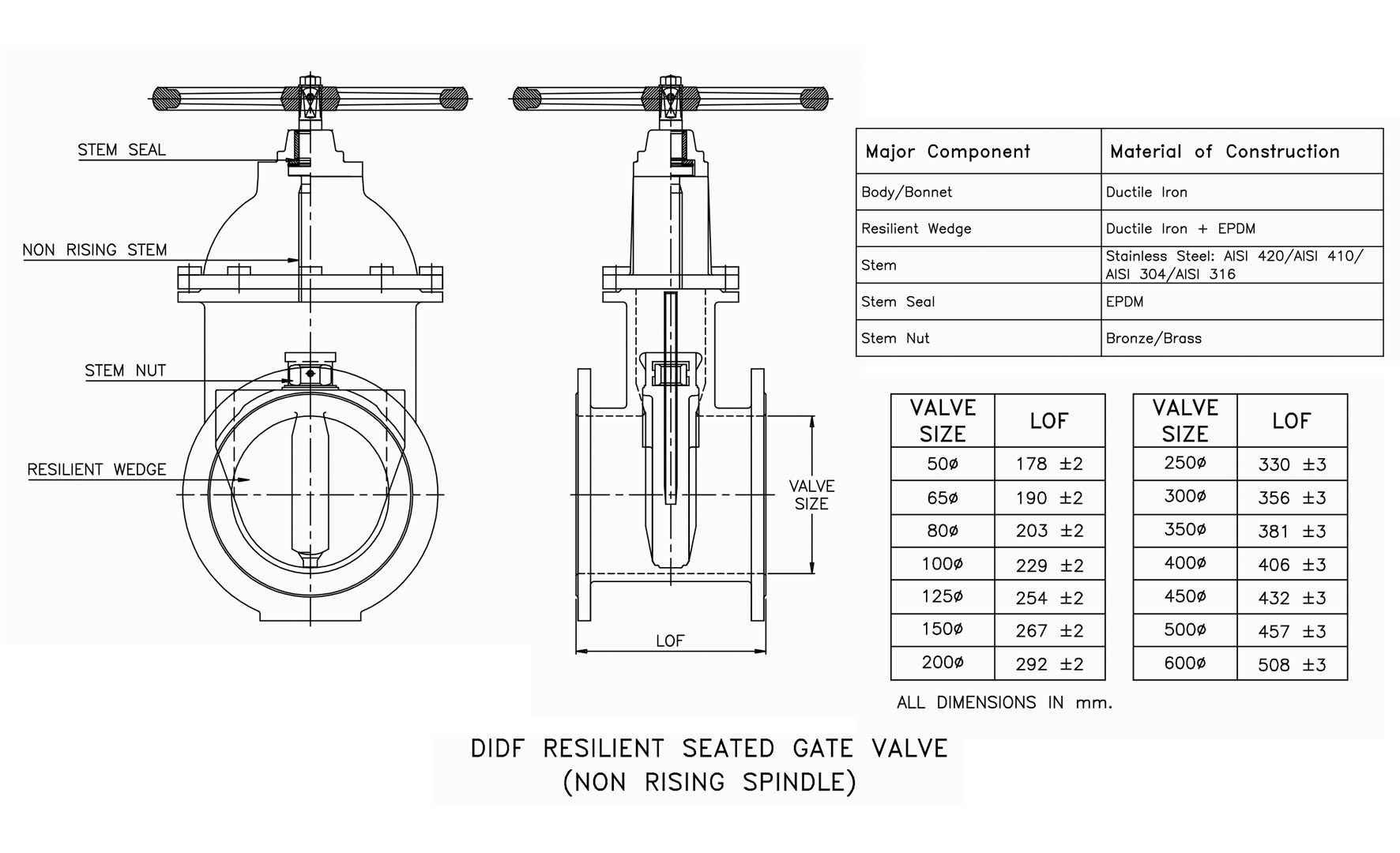

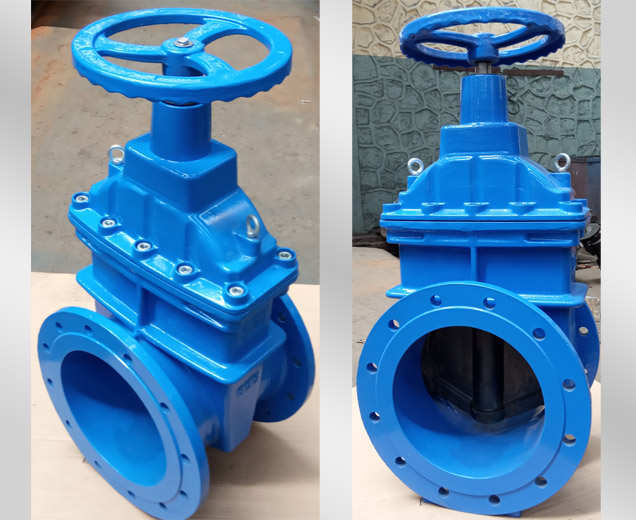

RESILIENT SEATED SLUICE VALVE
(Non-Rising Spindle 50-600 NB)
- Ductile Iron Body
- Elastomer encapsulated DI wedge
- Glandless
- Pocketless – smooth flow
- Ease of operation
- Negligible Head loss
- Electrostatic powder / Liquid epoxy coating
- Reference standard: BS EN 1171 / AWWA C-509
- Flanges conform to BS EN 1092 – 2 table 9 / IS 9523
- PN 16 (25 on request)
Note
- Recommended for clear drinking water application. Avoid extreme throttling.
- Exercise discretion when using for raw river water or sewage
- Sizes larger than 600 mm Φ on request
- Pressures greater than 16 bar and up to 25 bar on request
- Can be supplied with Cap / Handwheel / Gearbox / Electric actuator
